DC 120V 200A LCD Combo Meter Wireless Voltage Current KWh Watt Meter 12V/24V/48V Battery Capacity Power Monitoring +200A Shunt

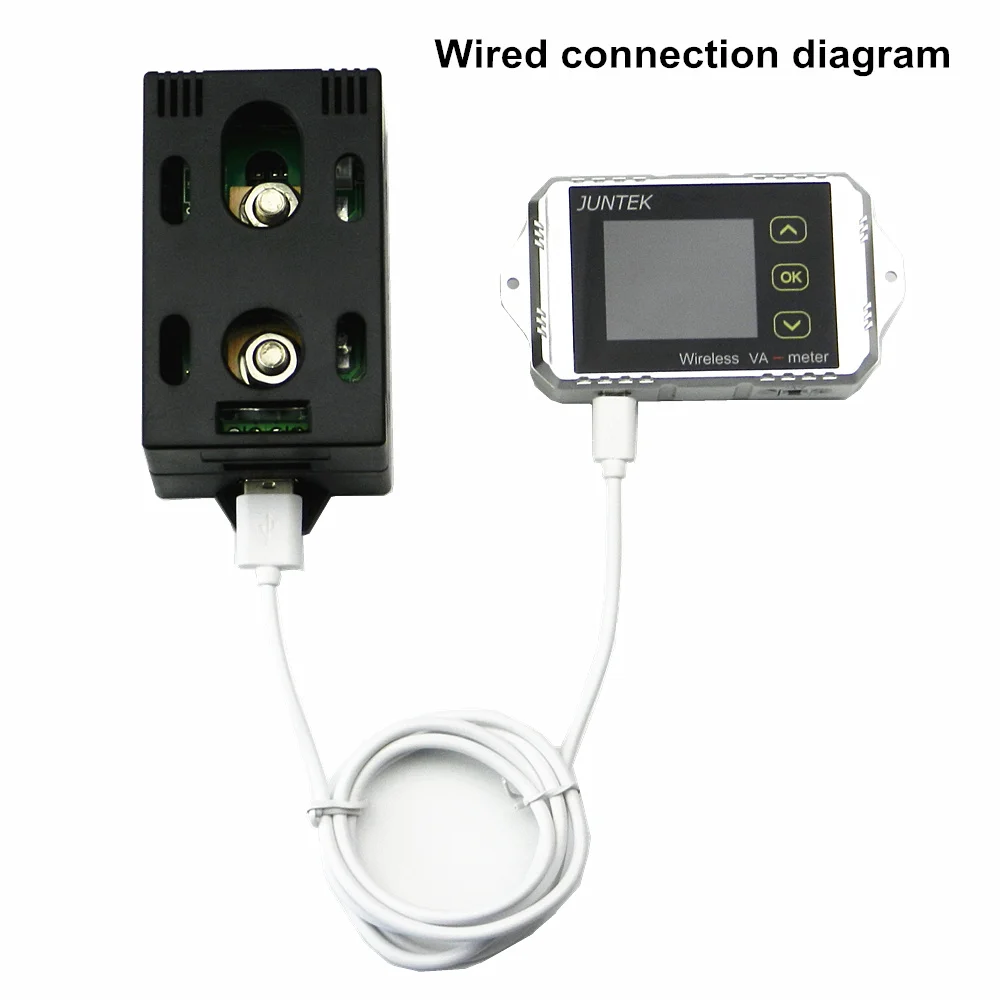

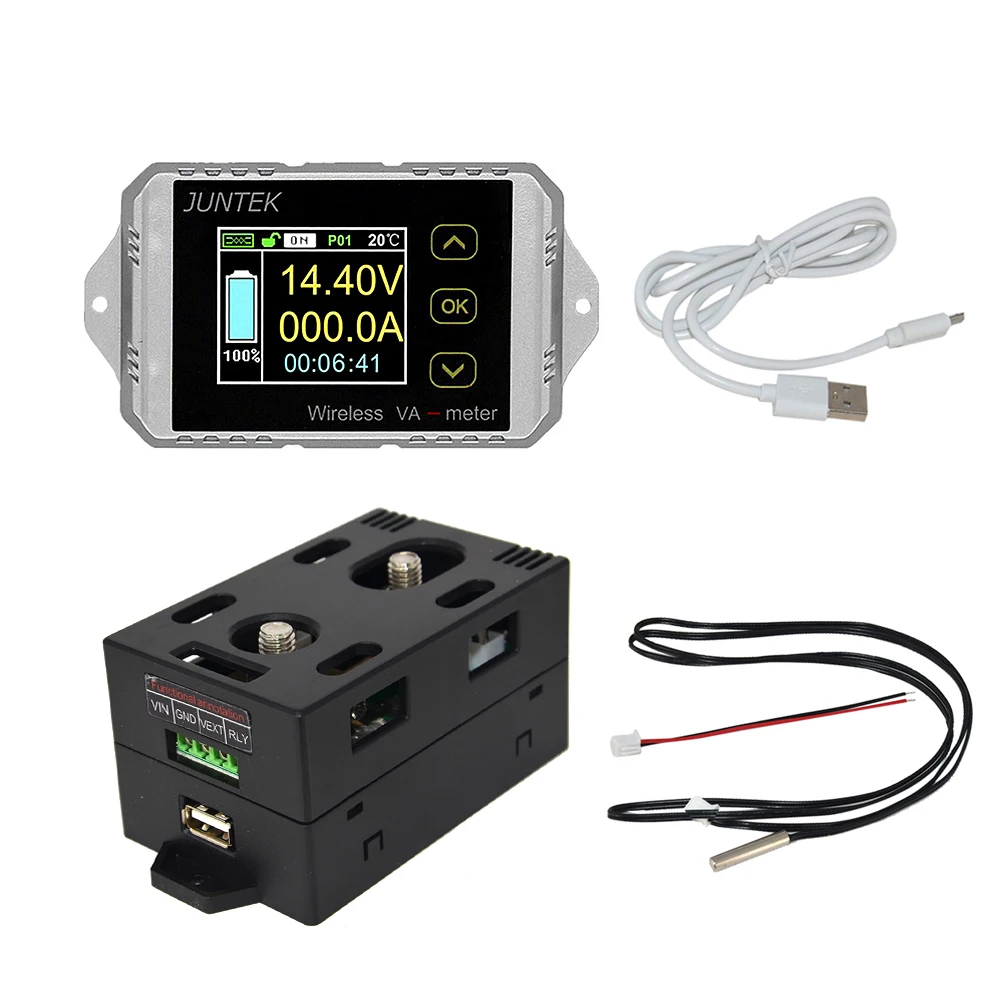

VAT Series  can measure the DC voltage, current, power, charge and discharge capacity, watt hour, time, temperature color coulomb meter；Meter is divided into measurement module and display module, the two modules can use the USB cable to connect the signal transmission, but also through the built-in wireless RF circuit to transmit signals；Accessories include USB data cable and temperature sensor；Measurement module can identify the forward and reverse current in both directions, without changing the wiring can be achieved on the battery charge and discharge capacity monitoring；Very suitable for solar power, wind power, electric car battery use.



1、Solve the problem of zero drift of the old product, the current can also ensure better accuracy after working for a long time;

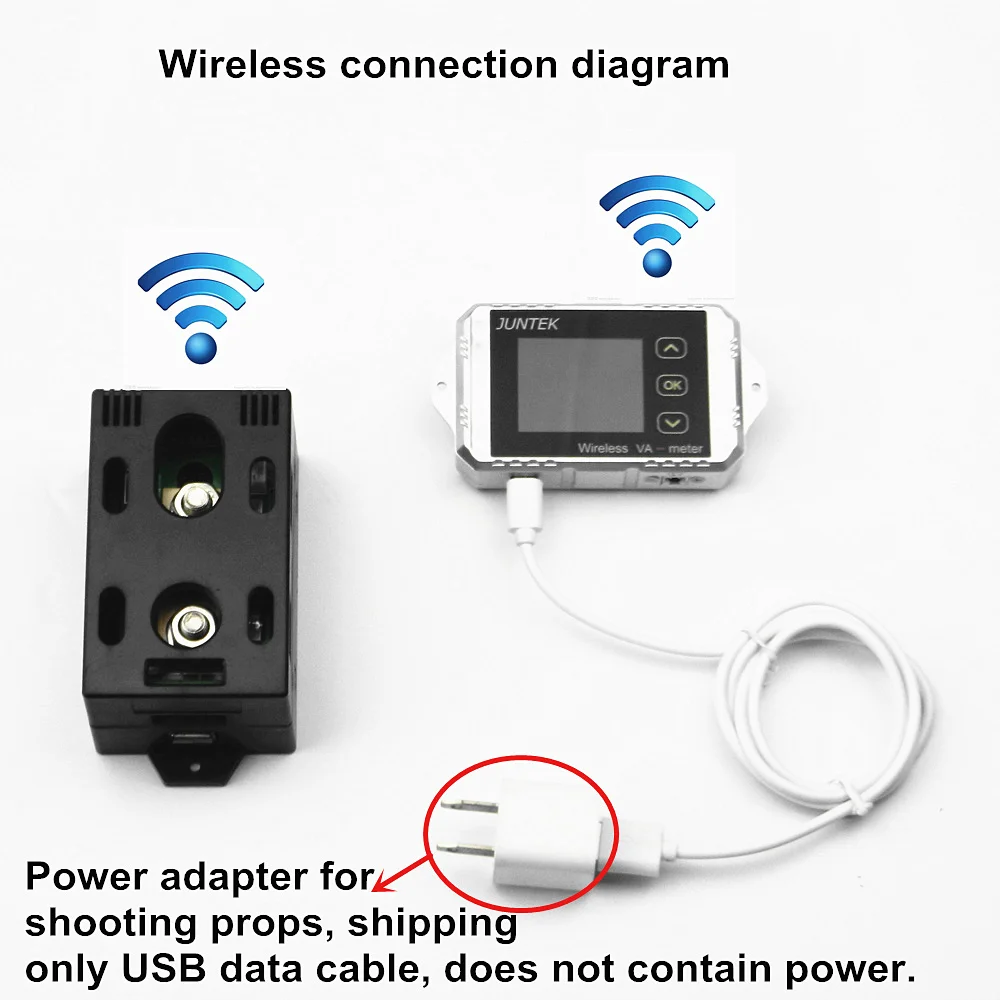

2、Wireless mode, the farthest transmission distance can reach 10 meters, USB data cable using Andrews mobile phone data cable, the connection is solid, not easy to loose;

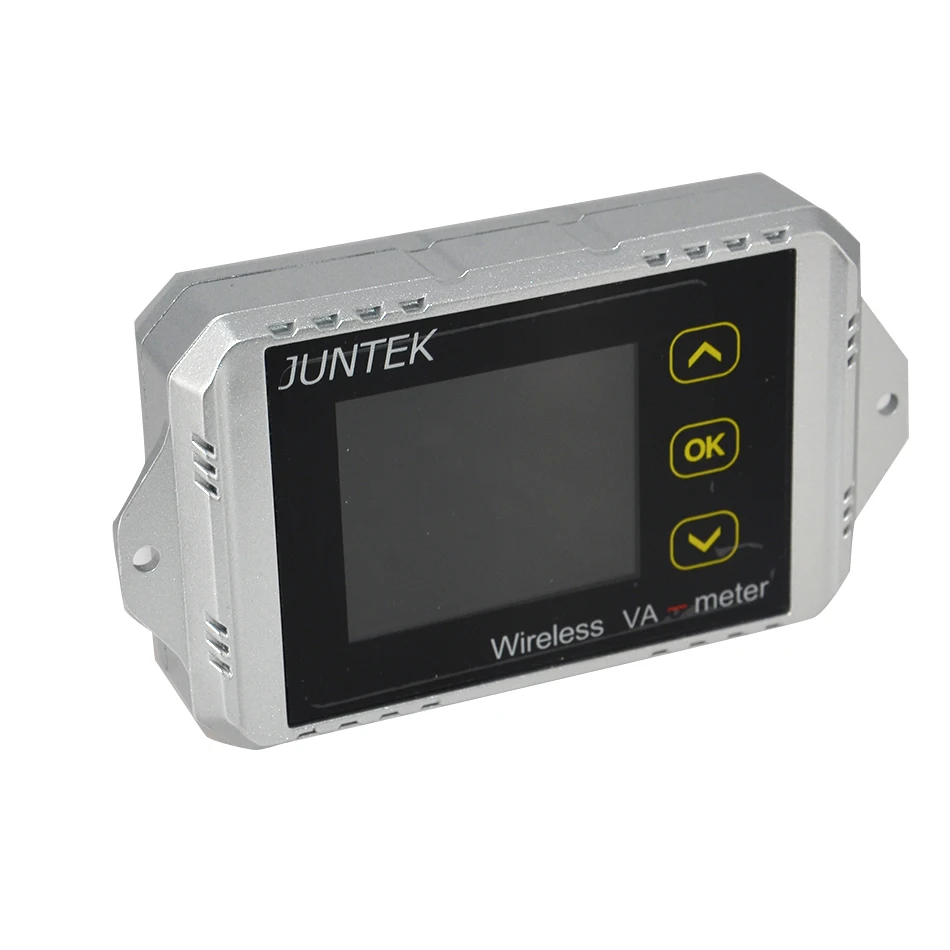

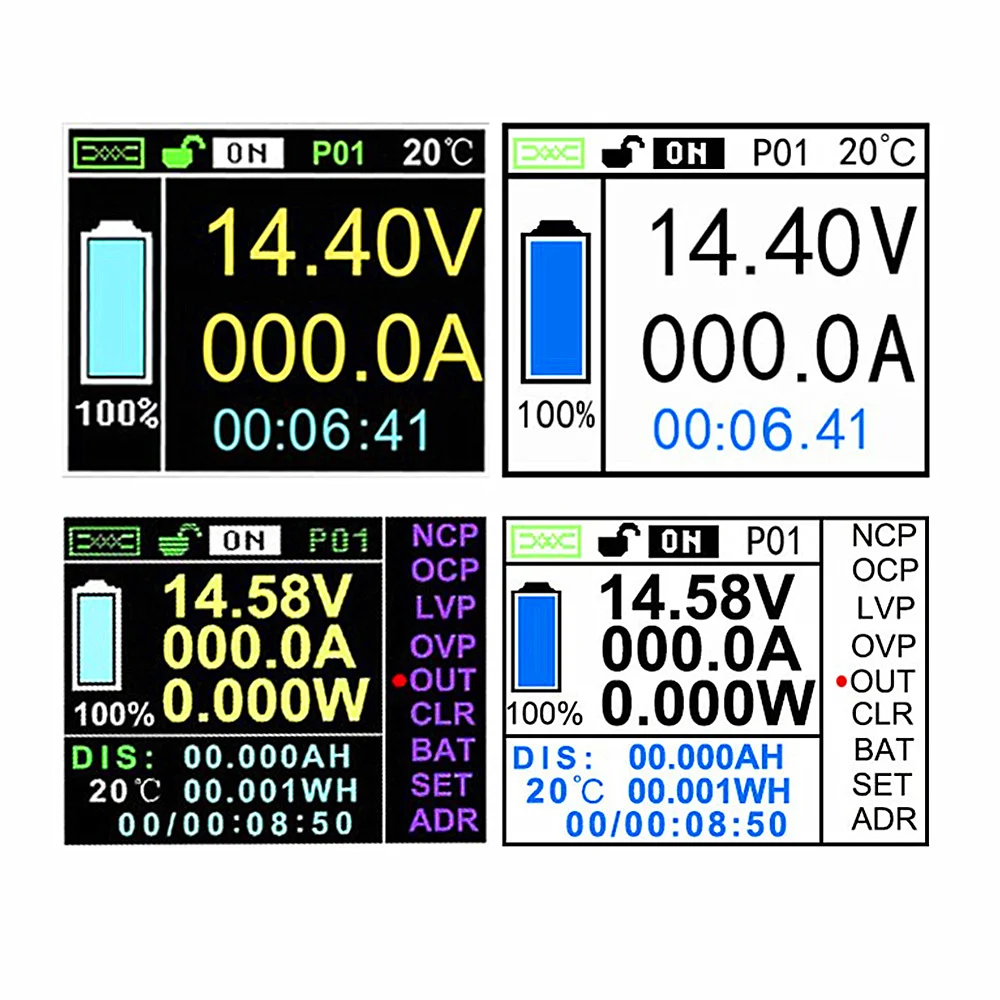

3、Display interface is divided into large font display interface, full-featured display interface and black and white display interface, to ensure that the sun can clearly see the display parameters;

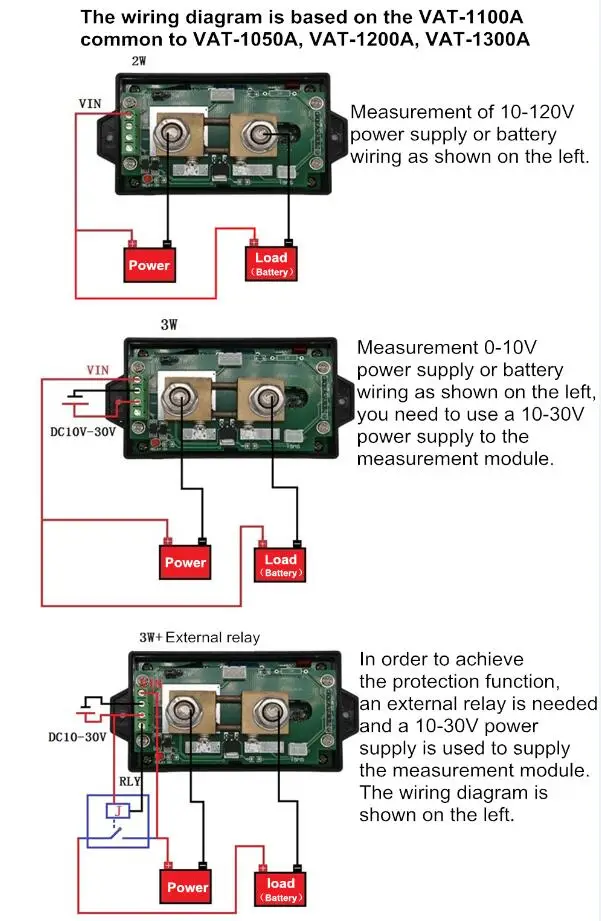

4、Can work with the relay to achieve circuit over-current protection, over-voltage protection, under-voltage protection;

5、During the measurement, the ampere hours, watt hours and time can be cleared without affecting the next measurement.

6、The display can be set to extinguish the screen, press any key to wake up the screen;

7、Button touch buttons, feel comfortable, clean and elegant interface;

8、Wireless mode can set different communication address, multiple machines at the same time do not interfere with each other;





Module	VAT-1050	VAT-1100	VAT-1200	VAT-1300
Voltage measurement range	0~120V	0~120V	0~120V	0~120V
Voltage accuracy	0.01V	0.01V	0.01V	0.01V
Current measurement range	0~50A	0~100A	0~200A	0~300A
Current accuracy	0.01A	0.1A	0.1A	0.1A
Temperature measurement range	-20~120℃（Standard temperature sensor）
Capacity display range	1%-99%（With battery symbol display）
Power measurement range	0~200KW
Power accuracy	0.001W
Capacity measurement range	0~2000KAH
Capacity accuracy	0.001AH
Watt-hour measurement range	0~4000KWH
Watt-hour accuracy	0.001WH
Time measurement range	0~99day（Calculated as days / hours. Minutes. Seconds; full 24 hours a day）
Time accuracy	1second
Communication channel range	A~Z（26 channels, each channel is divided into 99 addresses）
Voltage error	±1%+2
Current error	±2%+5
Sampling rate	5/second
Communication distance	Open up to 10 meters
Dashboard power consumption	0.4W
Display header power consumption	0.5W（5V 0.1A）
Delay protection time	0~10s

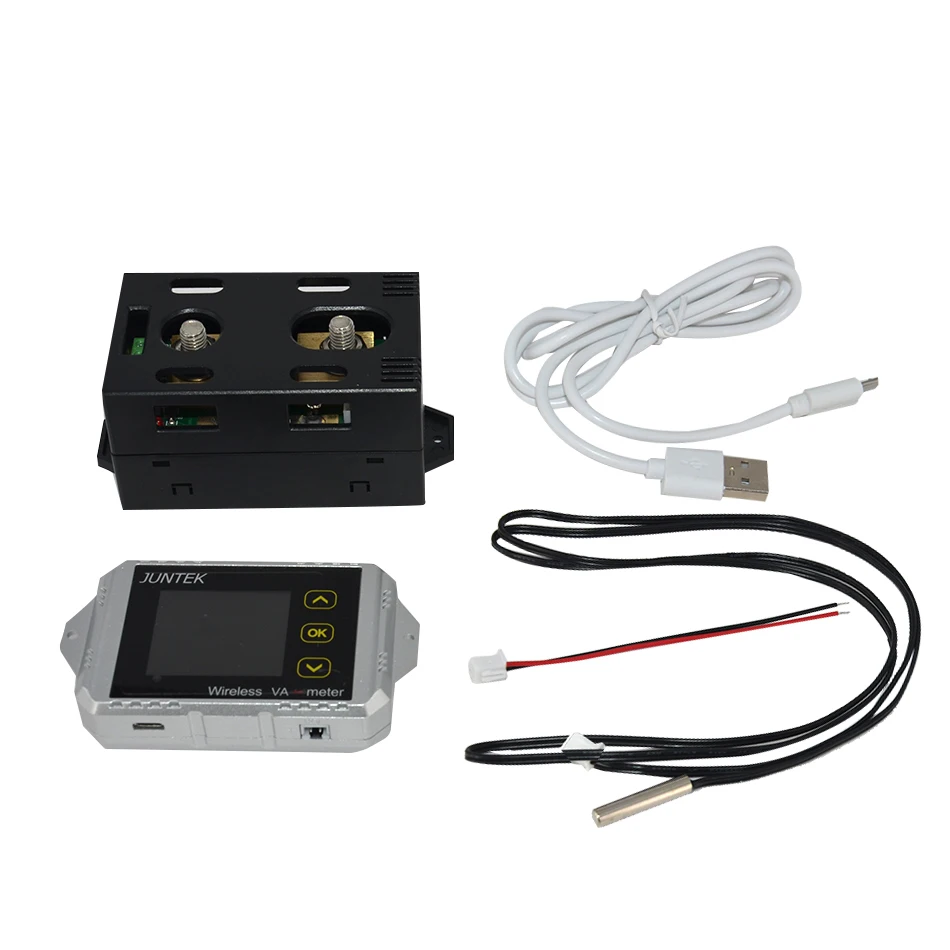

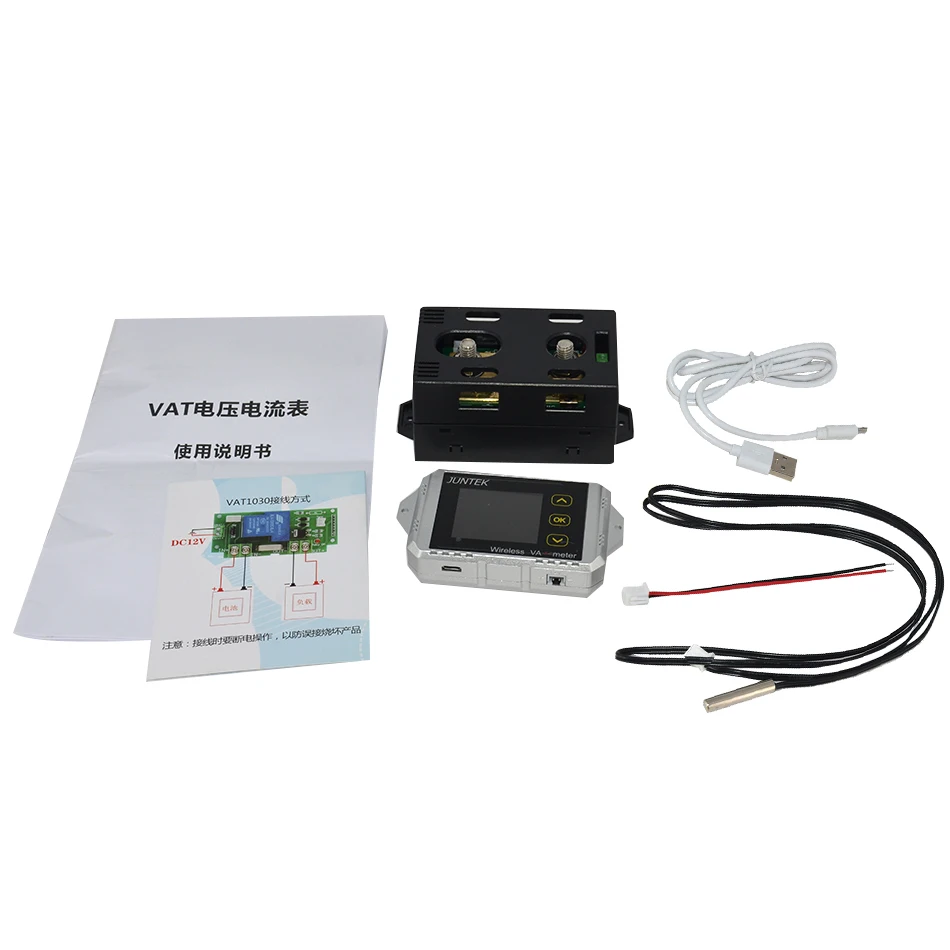

Package List:

VAT1200 Display module * 1

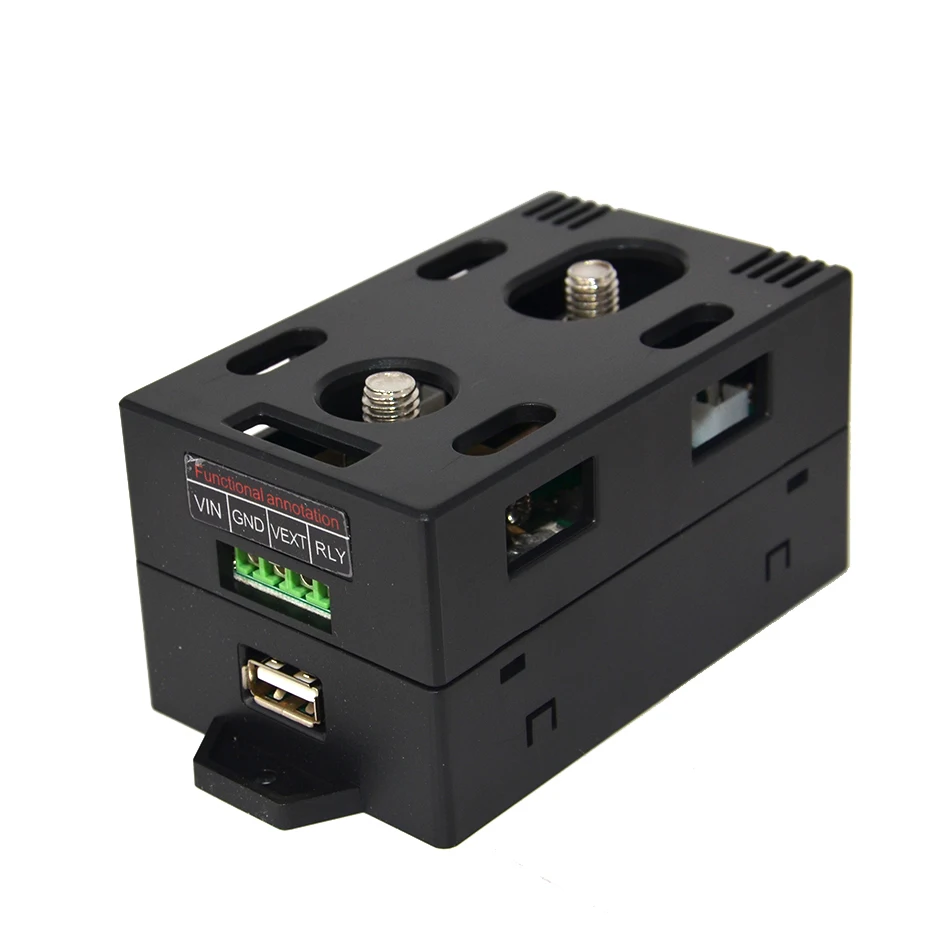

Measurement module * 1
USB data cable * 1
Temperature sensor * 1
Manual * 1
