9" inch Video Doorbell Intercom System

Including Outdoor unit ( Camera) and Indoor unit (Monitor)

1. With 4 wirs system connection. Using 4-cores cable to connect the camera and monitor.

The max distance is up to 100 meters. Different distance, use different diameter cable, please check the following from to choose corresponding cable. We will send a white cable (about 5 meter length) to you for testing. If need longer cable, you should buy it by yourself when installing.

2.Handsfree Dual-way Intercom and Indoor Monitoring

When a visitor ring the bell, the monitor will be activated and show the image outside. Press the answer button, then you can talk to outside, press the answer button again to turn it off. If you do not press the button after conversation is finished or if no one answer the call, the monitor will turn off automatically after 60s.

3. Support Two-way Audio and Ringback function

One camera can working with 6 indoor monitors. One monitor can working with 2 cameras. The camera can talk with the monitor. The monitor can talk with one of the monitor too. (If you want more camera or monitor, please contact us.)

4. Multiple ringtones - free switch

The 12 chord ringtones can be switched freely, elegantly and fair-sounding. Both of the ringtones and volume can be adjustable, can meet the original needs of your time. Don't need to worry about can't hear voice or hear it too loud any more.

5.700TVL IR Night Vision. The outdoor camera build-in 5 infrared LED light.

With this function, you can see outside no matter day or night. Keep your home more safer.

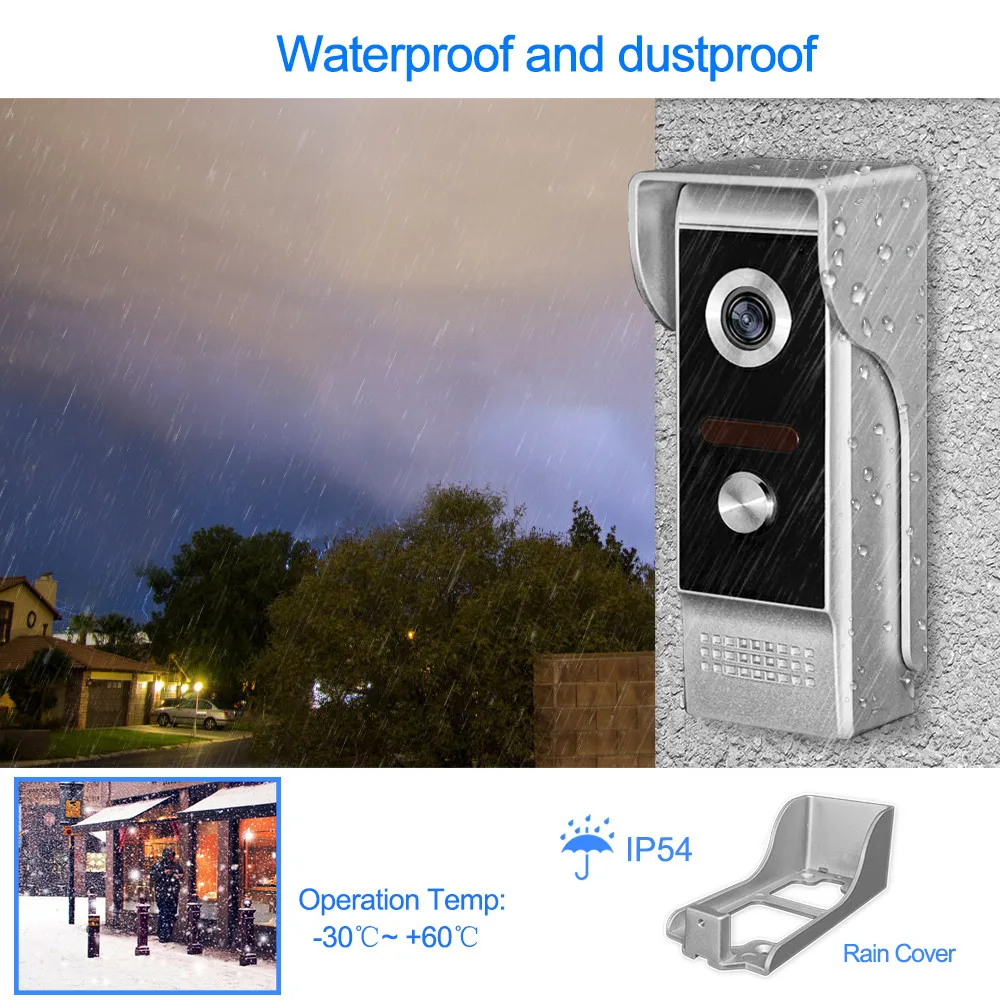

6.Waterproof and dustproof

The outdoor camera is equipped with a weatherproof cover, can be used outside, even in very bad weather.

7. One key to unlock

This video intercom can connect to the electric lock. You can open the door with both the indoor monitor and outdoor camera. Very convenient! ( note: lock is not including in the package, need to buy extra)

Product Specifications

Outdoor Camera Camera Resolution: 700TVL Night Vision: IR night vision, Up to 2 meters View Angle: 85 to 92° Wire System: 2-core or 4-core Wire system Waterproof: yes. Come with a waterproof cover Working Temperature: -35 °C ~ +55 °C Dimension: 50mm(L) x 27mm(W) x 125mm(H) Installation: wall mounted Material: ABS Plastic case, Aluminum wire drawing Model: XSL-M4 Indoor Monitor Screen: 9 inch color TFT-LCD screen Effective Pixels (Resolution): 800 x 480 Wiring: 4-wires pin end or 5-wires pin end Room to Room intercom: Yes Adapter Input: AC100 - 240V 50-60HZ Adapter Output: DC 15V 1500mA Power Adapter plug type: EU / US / AU / UK (Optional) Function: Intercom, monitor, unlock the door, door bell Working Temperature: -35 °C ~ 55 °C Installation: Wall mounted Material: ABS Plastic Dimension: 240mm(L) x 170mm(W) x 20mm(H) Model: XSL-V90R

Wiring Diagram

It is a 4-wire system, we will provide 5 meters 4 core cable to you to test the products. You need to buy longer cable when installing them. ( Please note the locks, power supply, and exit button at below photo is not included, if you need, please feel free to contact us)

Outdoor unit Standard installation:

Height is 145cm~160cm (distance between camera and the floor) Make sure that the camera lens is not pointing directly at the sun or at a reflective surface.

Package Including

There are three model for optional! V90R Monitor 1 * V90R Indoor Unit (monitor) 1 * Mounting Plate 1 * Power Adapter (EU/US/UK/AU optional) 1 * Bag of screws & wire ends 1 * User Manual V90R Monitor + M4 Camera 1 * V90R Indoor Unit (monitor) 1 * M4 Outdoor Unit (Camera) 1 * Mounting Plate 1 * Power Adapter (EU/US/UK/AU optional) 1 * White Test Cable 1 * Bag of screws & wire ends 1 * User Manual V90R Monitor x 2 + M4 Camera 2 * V90R Indoor Unit (monitor) 1 * M4 Outdoor Unit (Camera) 2 * Mounting Plate 2 * Power Adapter (EU/US/UK/AU optional) 1 * White Test Cable 2 * Bag of screws & wire ends 1 * User Manual

Our outdoor cameras are available in the following models and are available for purchase!

Model M4, L, L+(Black), L+(Silver) for optional.

Very Important: Please leave us message which type of the power plug you want, otherwise, we will send EU type by default.
