Характеристики
433Mhz Universal Wireless Remote Control Switch AC 110V 220V 1CH Relay Receiver Garage Door RF Transmitter Led Light Diy | Электроника
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-19-2026 | 0.43 руб. | 0.68 руб. | 0 руб. |
| Feb-19-2026 | 0.12 руб. | 0.80 руб. | 0 руб. |
| Jan-19-2026 | 0.56 руб. | 0.11 руб. | 0 руб. |
| Dec-19-2025 | 0.90 руб. | 0.72 руб. | 0 руб. |
| Nov-19-2025 | 0.95 руб. | 0.29 руб. | 0 руб. |
| Oct-19-2025 | 0.46 руб. | 0.9 руб. | 0 руб. |
| Sep-19-2025 | 0.66 руб. | 0.72 руб. | 0 руб. |
| Aug-19-2025 | 0.62 руб. | 0.13 руб. | 0 руб. |
| Jul-19-2025 | 0.55 руб. | 0.74 руб. | 0 руб. |
Описание товара

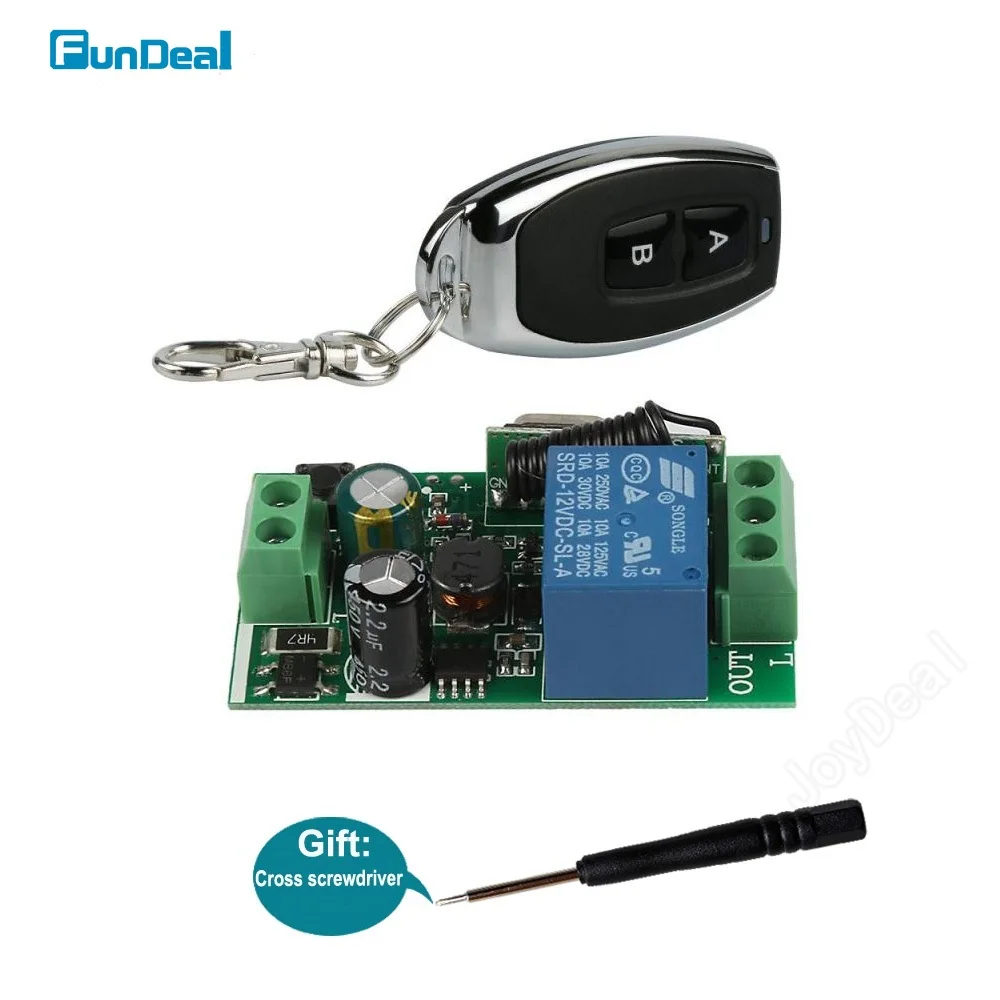

433Mhz Universal Wireless Remote Control Switch AC 110V 220V 1CH Relay Receiver Garage Door RF Remote Transmitter Led Light Diy
Technical Data:
About the AC Receiver Switch: Input Power:AC 85V-250VStandby Current:<5MA
RF Frequency:315M or 433M
RF working mode:superheterodyne
Receive sensitivity: >97dbm
Transmitting distance: 20-50m ( open space)
Decoding mode: software decoding
Remote storage:25pcs
Support remote type: Learning code 1527code, Fixed code(Rolling code can be design)
Working mode:Momentary, Toggle, Latching

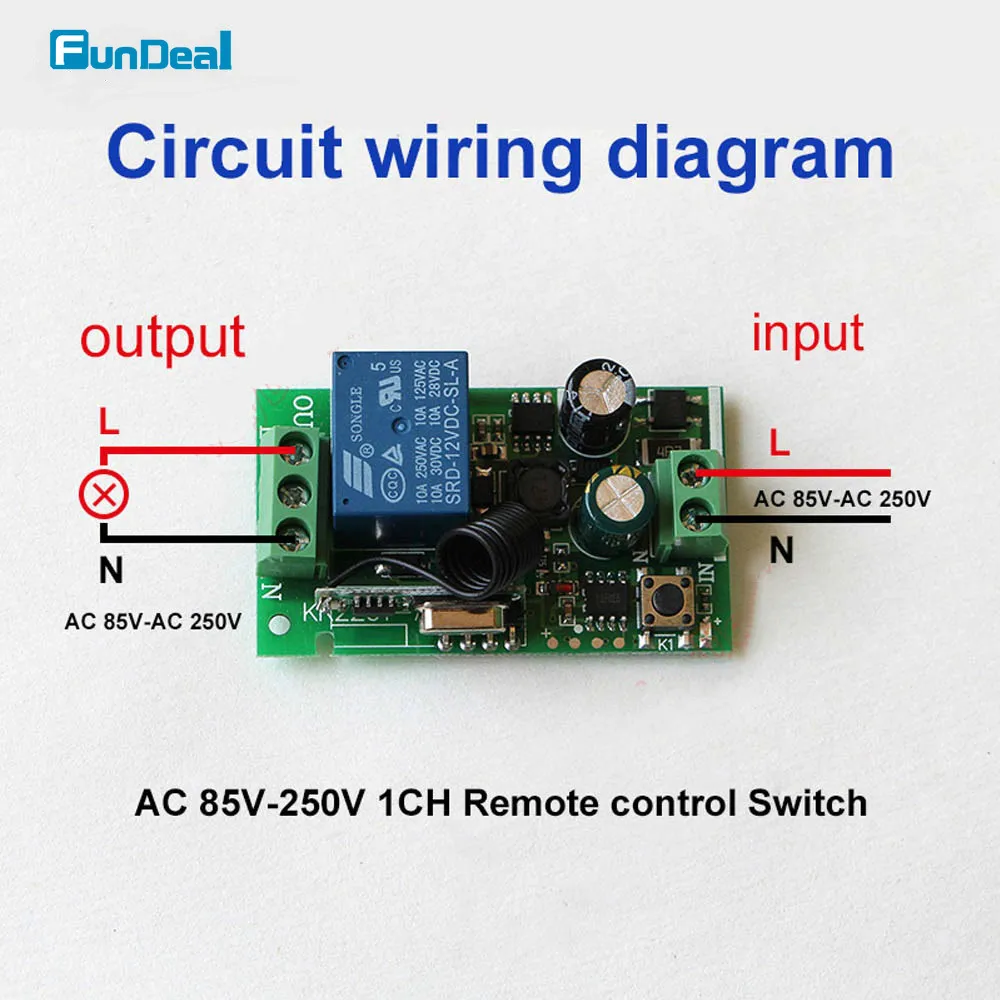

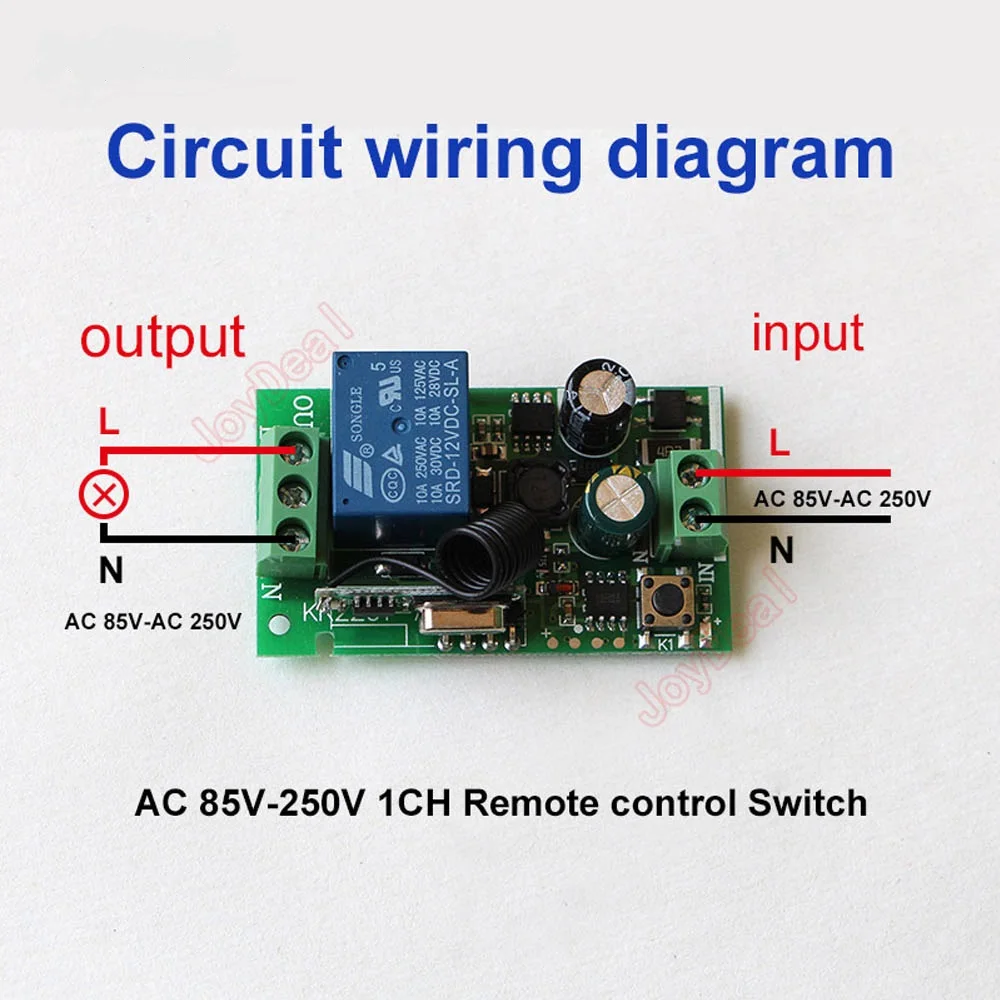

Wiring type:fixed termina

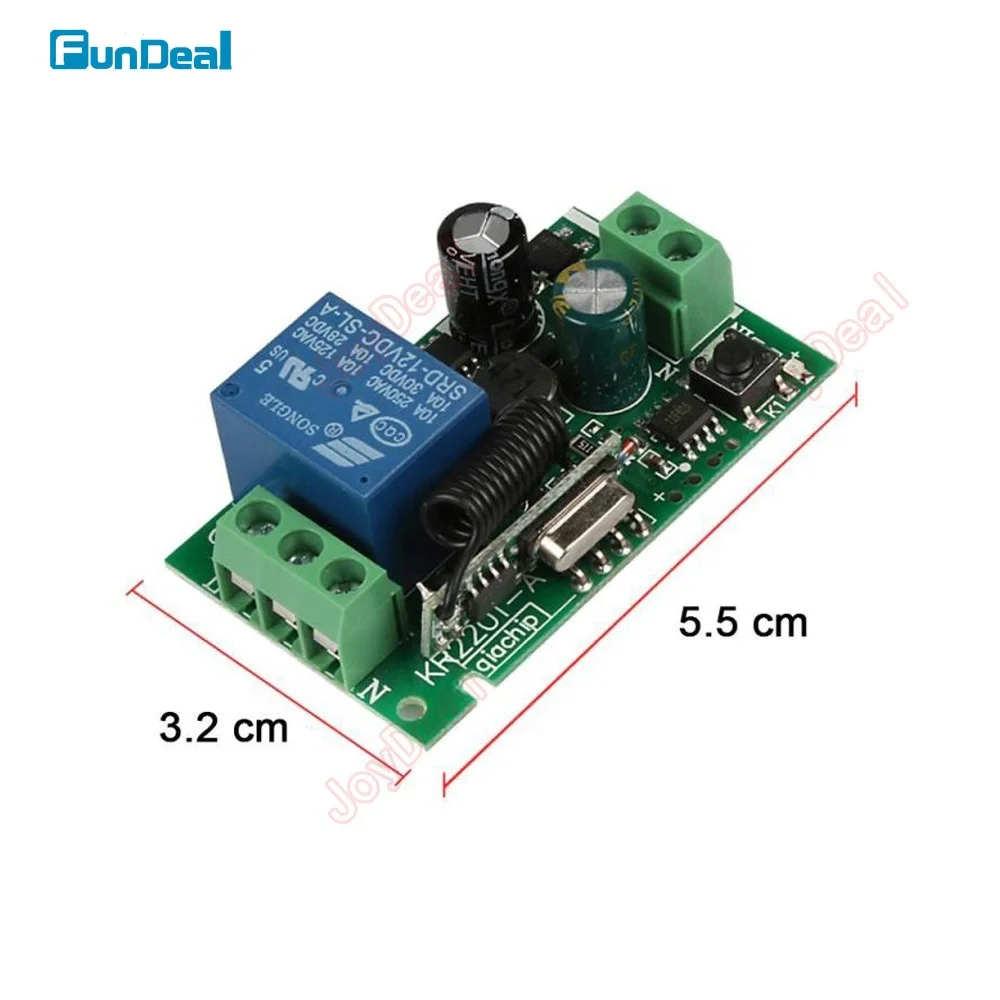

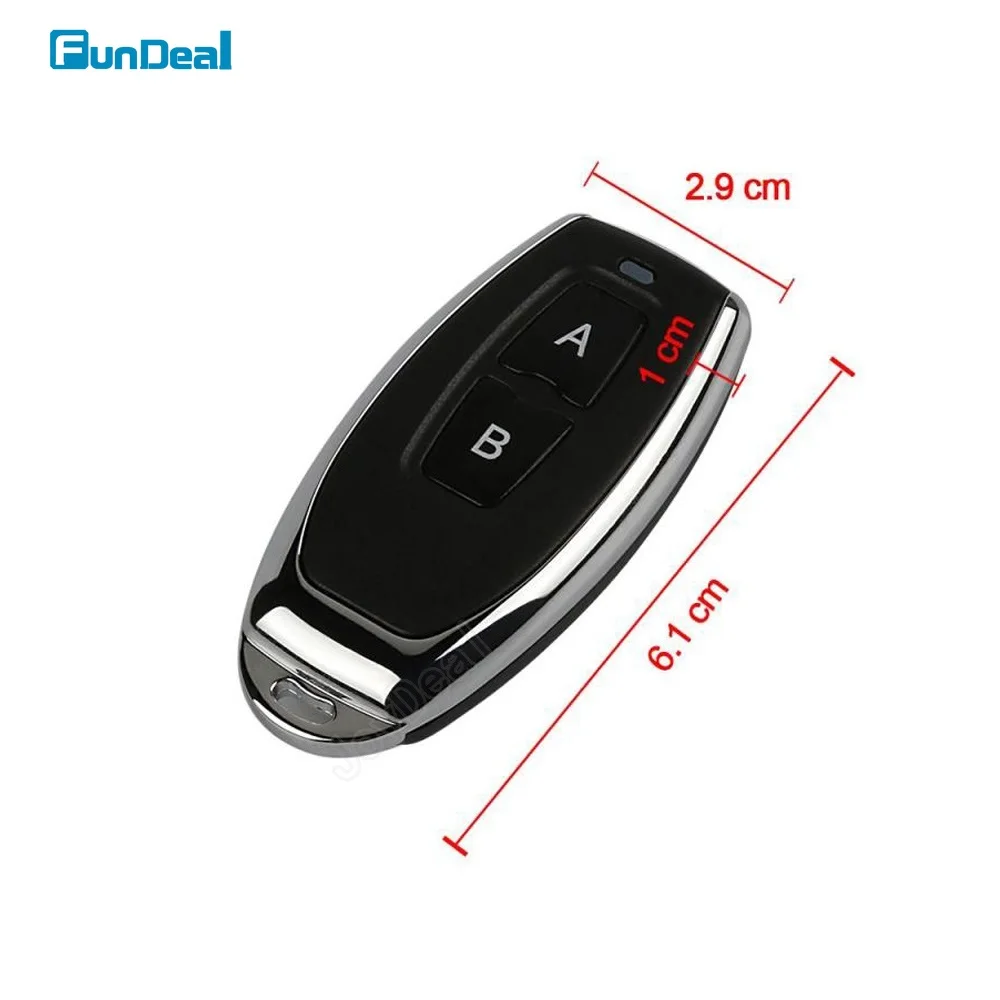

Dimension of PCB:53.8*31.2mm. About the DC 12V 2CH Transmitter: Operating frequency: 433.92MHz Power by 3V Coin Cell Button Battery (Battery included ), Material: PVC. Button: 2 buttons Size: 59mm x 28mm x 8mm; Operating voltage: 3V ; Operating Current: 12mA Transmitting power: 10mw Modulation mode: ASK (AM). Encoding type: Learning. Transfers distance: 80m
Momentary:Push the remote button , the relay connects, release the remote button , the relay dis-connects.
Toggle:Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects .
Latching:Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.
Clearing the code :
Push the learning button on the receivers for 8 times , it mean the code have been cleared successfully; After clearing the code, all the remote control cannot work any more.
Learning the code :(momentary)
Push the learning key on the receiver once time, it comes into momentary setting mode .
Wait for a moment , the LED will be off , it comes into learning state .
Push the remote button , LED indicator on the receiver board will flash then come off .
After 3 seconds, the LED indicator will be on again , learning successfully .
Learning the code : ( Toggle )
Push the learning key on the receiver twice time , it comes into toggle setting mode
Wait for a moment , the LED will be off , it comes into learning state .
Push the remote button,LED indicator on the receiver board will flash then come off.
After 3 seconds , the LED indicator will be on again , learning successfully .
Learning the code :( Latching )
Note: When you choose for latching mode , in order to learn more remote control , you need to learn two different button , the first time learnt is for "ON", the second time learnt for "OFF".
For example : button A = ON , button B = OFF
Push the learning key on the receiver triple time , the LED (on the Receiver)will blink 3 times. When the LED is on, press the button of the remote control(You want to let it learn), Push the remote button A, LED flash for 3 times . Push the remote button B, Led flash for 3 times . After 3 seconds , the LED indicator will be off , Learning to succeed.
A = ON , B = OFF .
What's More: The system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the initial remote control will be lost .
