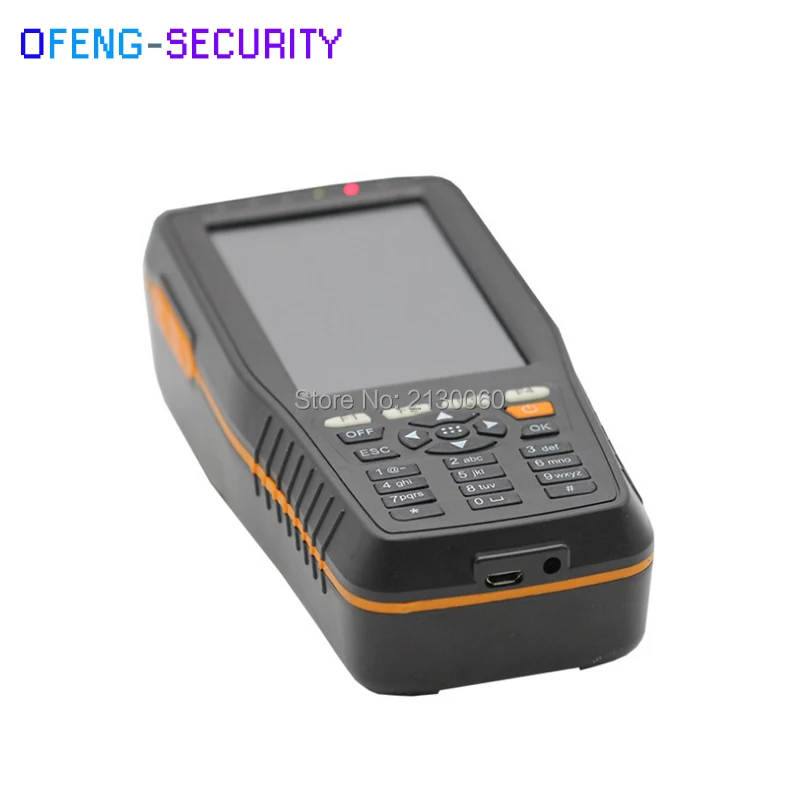

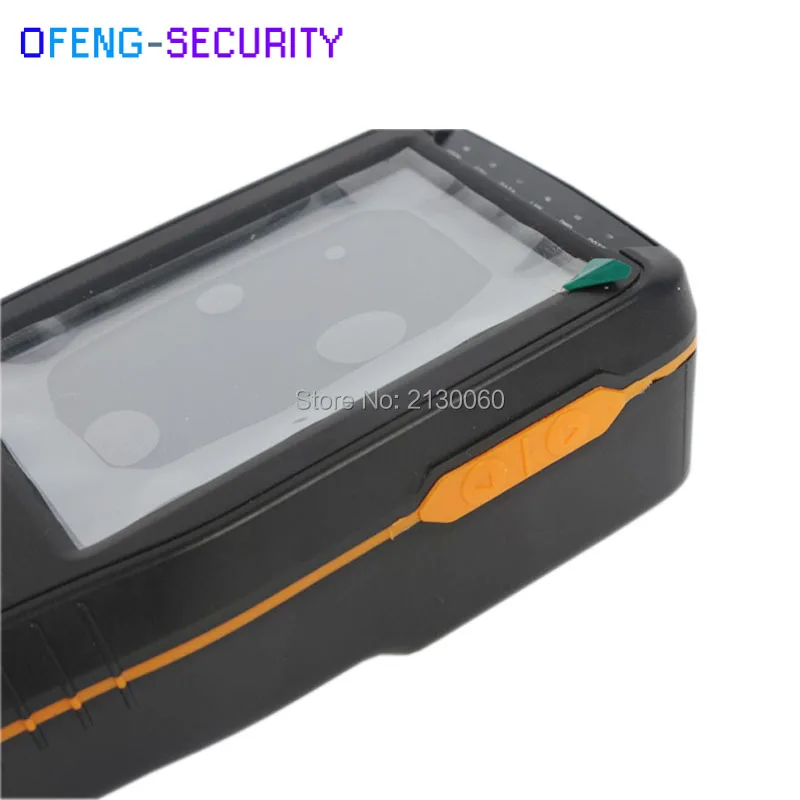

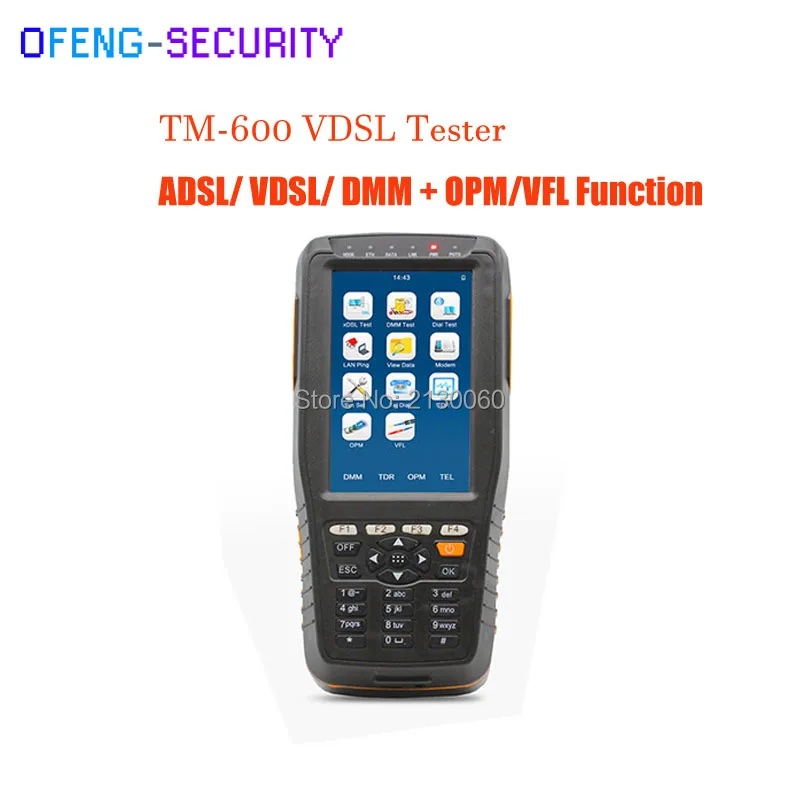

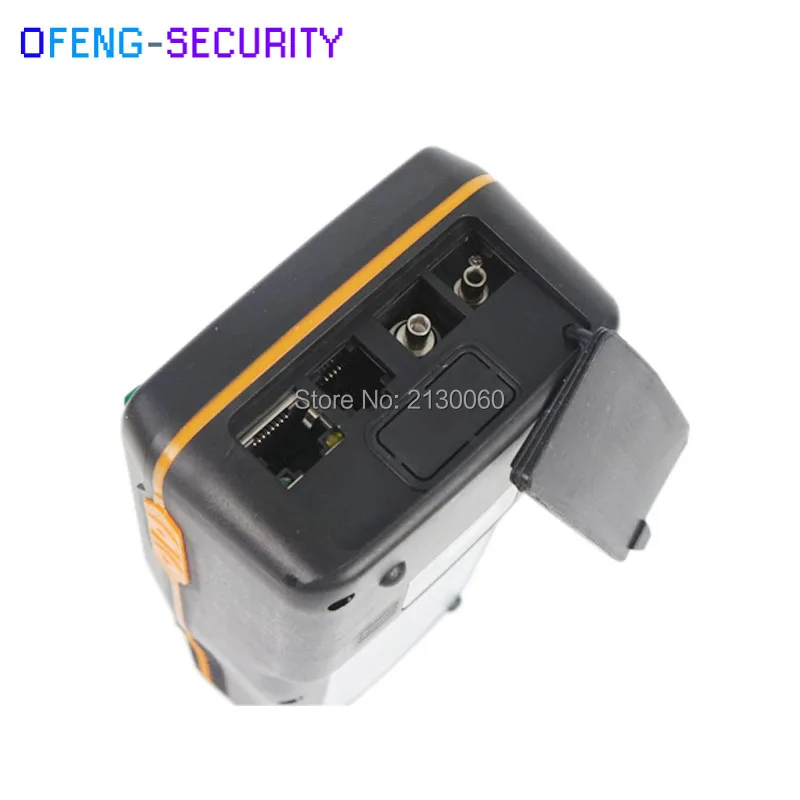

TM-600 VDSL VDSL2 Tester ADSL WAN & LAN Tester xDSL Line Test Equipment With Basic Version + OPM/VFL Function



1.Overview  TM-600 VDSL tester specially designed for xDSL line test (xDSL include: ADSL, ADSL2, ADSL2+, READSL, VDSL2 etc) and maintenance It provides xDSL test, PPPoE dial test, DMM test, Modem emulation, line voltage indication and so on. TM-600 VDSL Tester also introduces the Optical Power Meter and Visual Fault Locator function into the unit, as well as the TDR function; It is one multifunction tester with smart size, true color LCD and powerful management software as well as the 6600mah rechargeable battery etc   2. Key Features  1. Test objects: ADSL; ADSL2; ADSL2+; READSL; VDSL2 2. Fast Copper tests with DMM (ACV, DCV, Loop and Insulation Resistance, Capacitance, Distance) 3. Supports Modem emulation and simulating login to Internet  4. Supports ISP login (username / password) and IP Ping test (WAN PING Test, LAN PING Test) 5. Supports all multi-protocol, PPPoE / PPPoA (LLC or VC-MUX)   6. Connects to CO via alligator clip or RJ11  7. Rechargeable Li-ion Battery  8. Beep and LEDs alarm indications (Lower Power, PPP, LAN,xDSL)  9. Data memory fuction 10 LCD display, Menu operation  11. Auto shut off if no any operation on keyboard  12. Compliant with all known DSLAMs  13. Software management 14. Simple, portable and money-saved     3. Specification

ADSL2+
Standards	ITU G.992.1(G.dmt),ITU G.992.2(G.lite),ITU G.994.1(G.hs)

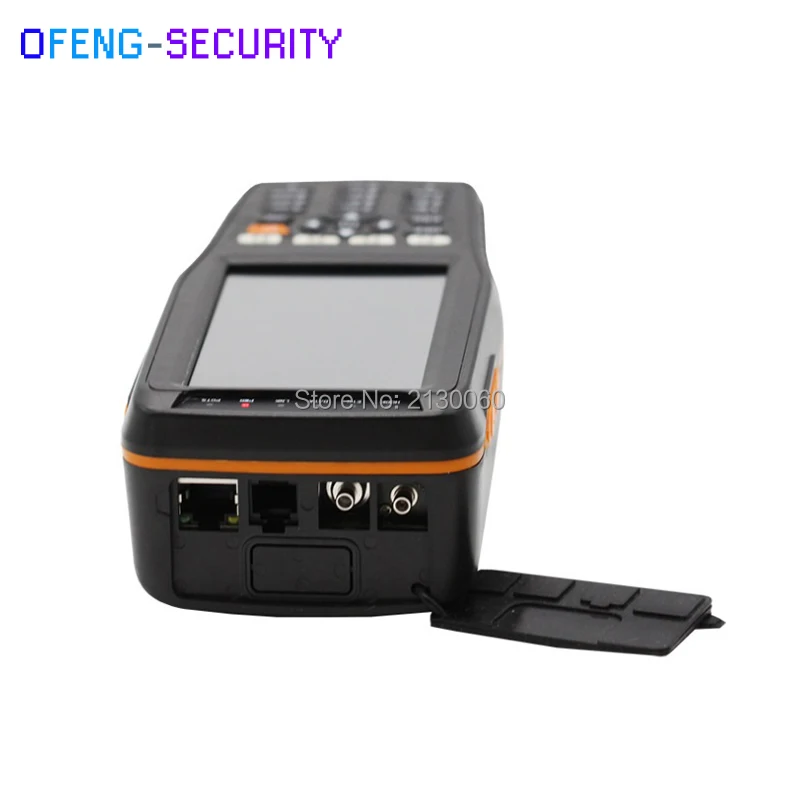

	ANSI T1.413 issue #2,ITU G.992.5(ADSL2+)Annex L
Up channel rate	0~1.2Mbps
Down channel rate	0~24Mbps
Up/Down attenuation	0~63.5dB
Up/Down noise margin	0~32dB
Output power	Available
Error test	CRC, FEC, HEC, NCD, LOS
Display DSL connect mode	Available
Display channel bit map	Available
ADSL
Standards	ITU G.992.1 (G.dmt), ITU G.992.2(G.lite)
	ITU G.994.1(G.hs), ANSI T1.413 Issue # 2
Up channel rate	0~1Mbps
Down channel rate	0~8Mbps
Up/Down attenuation	0~63.5dB
Up/Down noise margin	0~32dB
Output power	Available
Error test	CRC, FEC, HEC, NCD, LOS
Display DSL connect mode	Available
Display channel bit map	Available
VDSL2
Be compatible with ADSL2+, ADSL standard.
DSL line attenuation
DSL line noise margin
DSL line up/down channel speed (Inter/Fast mode)
DSL line up/down maximum rate
DMT sub channel bit number: 0~15, and each sub channel frequency points
DSL line error number (CRC, HEC, FEC, LCD, OCD)
DSL line local output power
DSLAM information
Error Code Second
Impulse Noise Protection (INP)
DMM Test
DC voltage (V):	0~400
AC voltage (V):	0~400
Loop resistance(Ω):	0~20000
Capacitance (nF):	0~1000
Insulation resistance (MΩ):	0~50
Optical Power Meter ( Optional)
Measurement range:	-70~+10dBm
Wavelength	850nm、1300nm、1310nm、1490nm、1550nm、1625nm
Visual Fault Locator (Optional)
Output Power	1mw
Wavelength	650nm ± 20nm
Tone Tracker (Optional)
With supplied accessories, it can do cable tracing and find the trend of the lines
TDR Function (Optional)-Auto Test the cable fault distance (Cable Break/ Cable Mix)
Test Range	<2.5km
Dead Zone	<1m
Resolution Rate	1m
General Specification
LCD	800x480 TFT
Power supply	Internal Rechargeable 6600mAH Li-ion battery
Battery Duration	4 to 5 hours
Working temperature	0-40 oC
Working moisture	5%-90%
Dimensions	170mm×70mm×52mm
Weight:	<0.6kg
Support 7 VDSL2 profiles: profile 8a, 8b, 8c, 8d, 12a, 12b, 17a
