Output signal:N / A (mA)
Operating Voltage:220 (V)
Dimensions:86 * 86 * 13.6 (mm)
Weight:0.3 (Kg)
Product Image

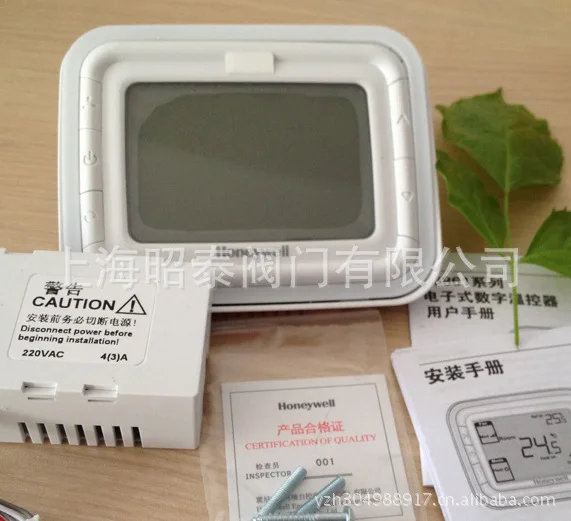

Halo Series T6861 large-screen LCD thermostat
110/220 VAC two control / four-pipe fan coil control
Application
Used (three-speed) fan and fan coil valve control applications, including: two control and four-pipe cooling only / single hot / cold manual switching ventilation function
Automatic / manual three-speed fan control valve control
Optional automatic speed control fan speed or manual speed control
Provide ventilation mode, run according to the manual Winds

Product Specifications

Operating voltage 11 0 (+/- 10%) VAC, 220 (+ 10%,

-15%) VAC

The frequency of 50 / 60Hz

Control PI control algorithm, the switch control

When the control accuracy 21 , control accuracy +/- 1

Load capacity of the 220V power supply, fan output capacity 4 (2) A,

Valve output capacity 2 (1) A

11 0V power for the fan output capacity 4 (2) A,

Valve output capacity 2 (1) A

Operating life 100,000

Temperature setting range 10 ~ 32

Temperature display range 0 ~ 37

Installation installed directly on the wall 86 × 86mm junction box

Or 2 × 4 the junction box

Protection class IP20

Environmental Operating Temperature -18 ~ 49

Transport temperature -35 ~ 65

Relative humidity 5 to 90%

Feature

Ultra-modern design, suitable for office, hotel, home
Cross-section and vertical section two styles, can be used for different occasions
Slim design, can be installed directly 86 boxes
Blue / green backlit with blue / green color edge, stylish and elegant
Two / four applications into one, easy to configure large display, English and icon display
Easy installation
Timer switch function
Select the display ambient temperature (factory setting) or set temperature
Button to select the fan speed automatic or manual operation
External temperature sensor can be connected
By keys or dry contact (card) into a power saving mode
Timed Loop (CPH) function
Temperature display value may be adjusted
Temperature unit display Celsius or Fahrenheit
User settings can be maintained for a long time power failure
After the shutdown mode selectable low temperature protection
Can be locked (unlocked) part or all of the keys by installing the set
Temperature setpoint range can be limited, more energy-saving effect

Features
Valve control
Thermostat via built-in temperature sensor or external temperature sensor to obtain temperature, through the control valve output switching signal instructions to the room temperature is maintained at the set value.
Temperature display
Display temperature thermostat can be set according to demand internal sensor or an external sensor senses the room temperature or room temperature display settings. This can be done in the installation settings.
Timed Loop
Several times per hour frequency start valve in order to obtain a more precise temperature control room, through the timing loop (CPH) feature allows the thermostat close to the set value (temperature difference at half the bandwidth) at room temperature.
Default CPH heating mode is 4 times per hour, three times per hour in cooling mode. CPH value can be changed in the installation settings.
External temperature sensor
In addition to built-in temperature sensor thermostat, the temperature can also be controlled according to the external temperature sensor (NTC20K).
Keyboard Lock
During the installation settings, you can be set to lock the keyboard. There are four locking methods: No keyboard lock is enabled (default), the mode key lock, key lock mode and speed, all key lock
Saving mode
Or on the keys can be directly through the passive dry contact (for example, hotel room card) Operating (continuous press mode button for 3 seconds) to enter power-saving mode. If the system into power saving mode, the screen will appear. You can choose dry contacts are normally open or normally closed type set at installation.
If you are into power saving mode by dry contact, all the keys are locked, but the setting mode key combination is still valid. And if it is through the button to enter the power-saving mode, so any subsequent keystrokes will end a power-saving mode.
If the state is the heating energy-saving mode, the set value will automatically be converted to energy-saving mode setting heating temperature is usually 10 ~ 21 , the default value is 18 , can be parameterized in the installation settings, set set in steps of 0.5 .
If the state is in cooling energy-saving mode, the set value will automatically be converted to energy-saving mode of cooling set temperature is usually 22 ~ 32 , the default value is 26 , can be parameterized in the installation settings, set step length of 0.5
