Brand NameG-NiceRFModel Number10pcs RF2401OriginMainland ChinaCompatible Brand/ModelNoneMeasurement unitpiece/piecesEach pack10Operating Voltage1.9~3.6VOperating Frequency2.4G~2.4835GHzReceiving Sensitivity-115dBm@ 1.5kbpsOperating Temperature-40~+85 degreeSleep Current<1uATX Current11mA@-1dBm, 36mA@+10dBmRX Current7mARF Rate1.5~72KbpsModulationFSKCompatibleHandheld Player, Game Console, Kinect, PlayStation Move2 149,35 ₽-16%2 149,35 ₽-16%1 805,81 ₽1 805,81 ₽there is store discountAdd to CartBuy now1 805,81 ₽loader

Description

10pcs RF2401 FSK Small Size 2.4G Wireless RF Transmitter and Receiver Module

10pcs*RF2401 (FSK RF Transmitter and Receiver Module)

10pcs* cable antenna

RF2401 is a FSK wireless transceiver working in 2.4GHz ISM band. Compared to the 2.4GHz module/chip, the low consumption, high sensitivity, high power output, long distance communication is most attractive.  This module adopts the wireless chip which is designed by one of the top Euro RF company. All the features of low cost, small size and stability, 10dBm output power, 7mA @receive mode and -115dBm sensitivity are much better than the existing 2.4G RF module in the market. It can be widely used in many fields. It complies with the FCC and ETSI certification.

Feature:

• Frequency arrange:2400-2483.5 MHz
• Sensitivity up to -115dBm @ 1.5K
• Output power:-20~10 dBm
• Data rate:1.5-72 kbps
• FSK modulation
• 1.9-3.6 V power supply
• Low power testing
• Ultra low current shutdown mode current< 10nA
• Low current receiving mode < 8 mA
• Transmitting current:11 mA @ -1dBm  36 mA @ +10 dB
• Working temperature:-40 ~ +85 °C
• integrated voltage regulator
• Frequency hopping function

Application

• Remote control
• Remote meter reading
• Home security alarm and remote keyless entry
• Sensor networks
• Industrial control
• Tire Pressure Monitoring
• Home automation telemetry
• Health Monitoring
• Personal data records
• Wireless PC peripherals
• Toy control
• Tag reader

Electrical Specification

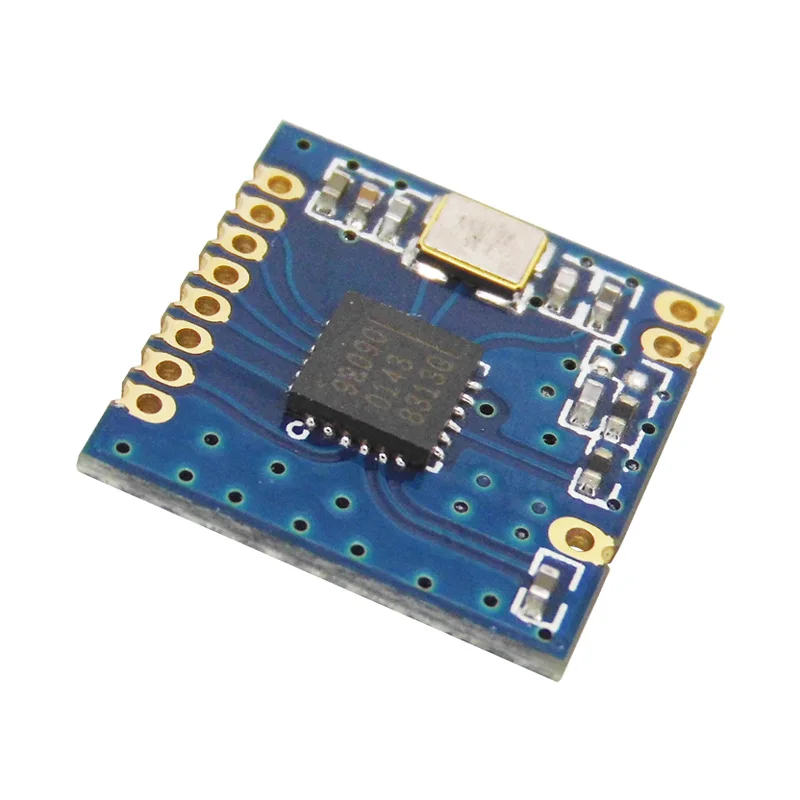

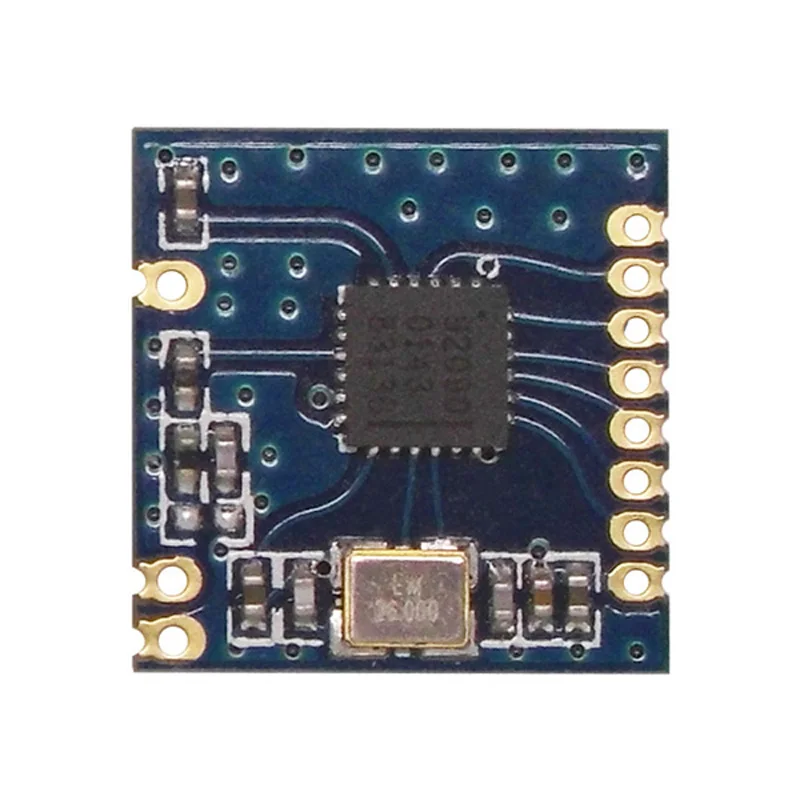

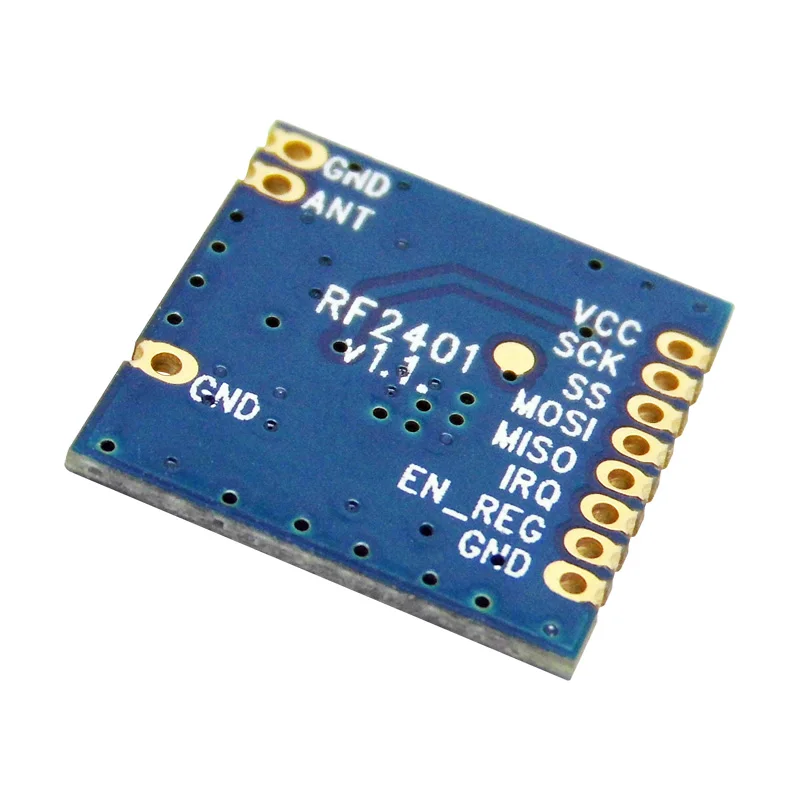

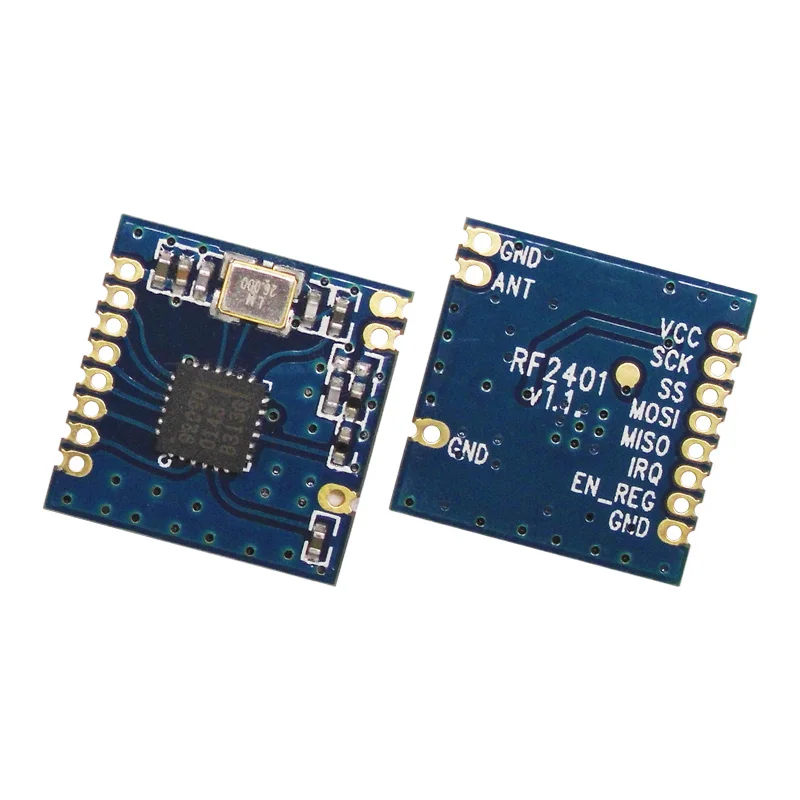

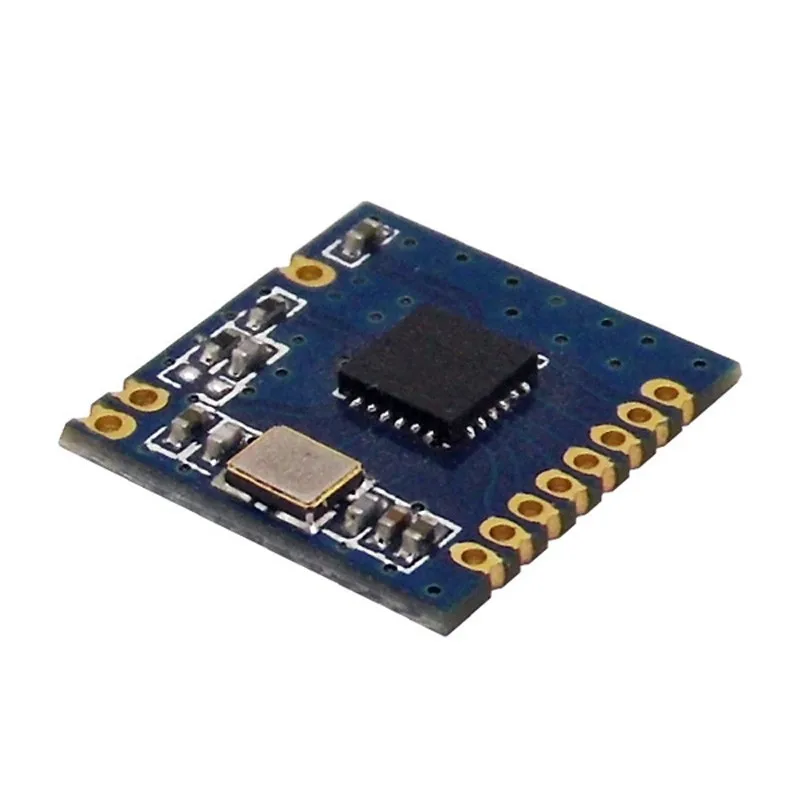

Product show

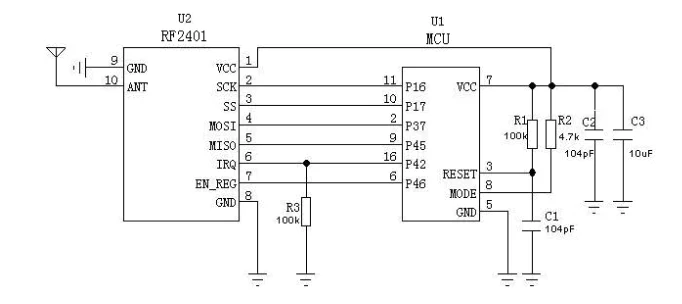

Schematic

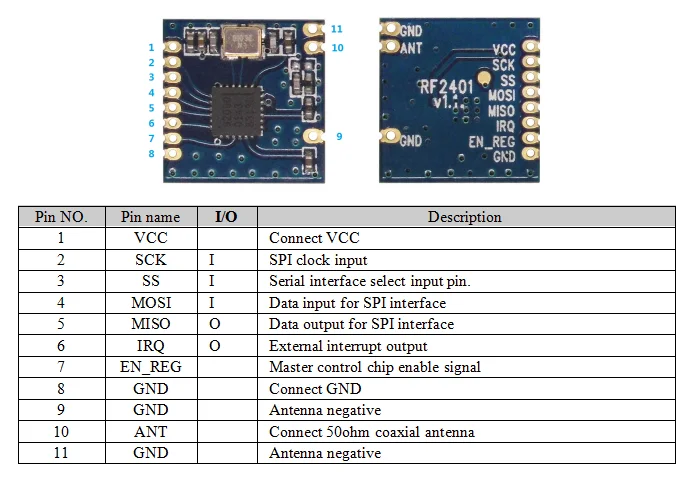

Pin Configuration

Mechanical Dimension

Our company is engaged in researching, developing, producing and selling IOT(internet of things) products. We devoted ourselves on providing good RF modules, walkie talkie modules and integrated digital sensor modules. Meanwhile, ODM and OEM projects are welcomed. With more than 10 years experience of product design in RF and sensors, we have earned a good reputation among our customers.

Shipping

1.  Items will be shipped within 3~5 days after we receive the full payment.

2.  We do not guarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.

3.  If you do not receive item within 60 working days (10 weeks), please contact us to investigate the case.

4.  Please note that buyers are responsible for all additional customs fees, brokerage fees, duties, and taxes for importation into your country. These additional fees may be collected at time of delivery. We will not refund shipping charges for refused shipments.

We can provide EMS, DHL, Fedex, TNT China Register Post Air Mail and etc.

* All free shipping on our store are mostly China Registered Post Air Mail.

* If you need fast shipping like DHL or other, you will need extra payment, pls contact sales to evaluate the price.

With three protections

* Poly bag to cover

* Bubble bag to protect

* Finally, yellow carton for deliver

1.  We appreciate your order and and we do our best to serve you.

2.  We offer an instant 7 days return policy (7 days after we receive the items).

3.  The returned item has to be in its original condition.

4.  We are able to refund your money without shipping cost.

2.  If you have any problems with our items or services, please feel free to contact us first before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer services.

3.  For any question, pls feel free to contact us by  emai l or via  TradeManager.

d) Why should I use antennas?

The antenna is important in the communication. For this module, the match impedance is 50 Ohm. We have many kinds of antenna for customer to choose, please contact the corresponding sales engineer for help, or find the antenna in our website.

e) What kind of USB bridge board should I use?

The USB Bridge is useful for customers to configure the parameters and simply to do communication test with PC.
