Характеристики

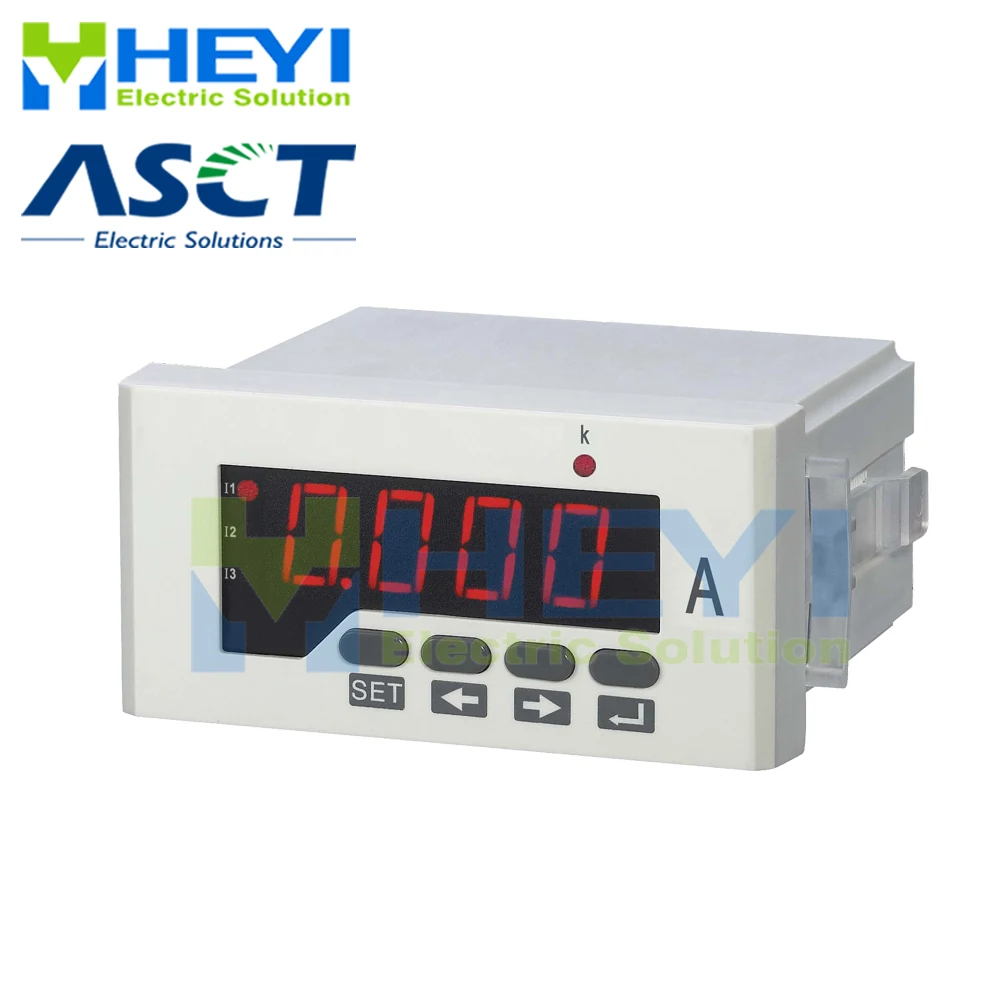

LED Three phase digital ampere meter HY-3AA series ac Class 0.5 current | Инструменты
История изменения цены
*Текущая стоимость US $28.36 - 70.89 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-19-2026 | 33.6 руб. | 35.98 руб. | 34 руб. |
| Feb-19-2026 | 33.24 руб. | 35.87 руб. | 34 руб. |
| Jan-19-2026 | 28.43 руб. | 29.97 руб. | 28.5 руб. |
| Dec-19-2025 | 32.2 руб. | 34.68 руб. | 33 руб. |
| Nov-19-2025 | 28.11 руб. | 29.79 руб. | 28.5 руб. |
| Oct-19-2025 | 32.14 руб. | 34.34 руб. | 33 руб. |
| Sep-19-2025 | 32.16 руб. | 34.16 руб. | 33 руб. |
| Aug-19-2025 | 31.71 руб. | 33.55 руб. | 32 руб. |
| Jul-19-2025 | 31.24 руб. | 33.18 руб. | 32 руб. |
Описание товара
Company display:

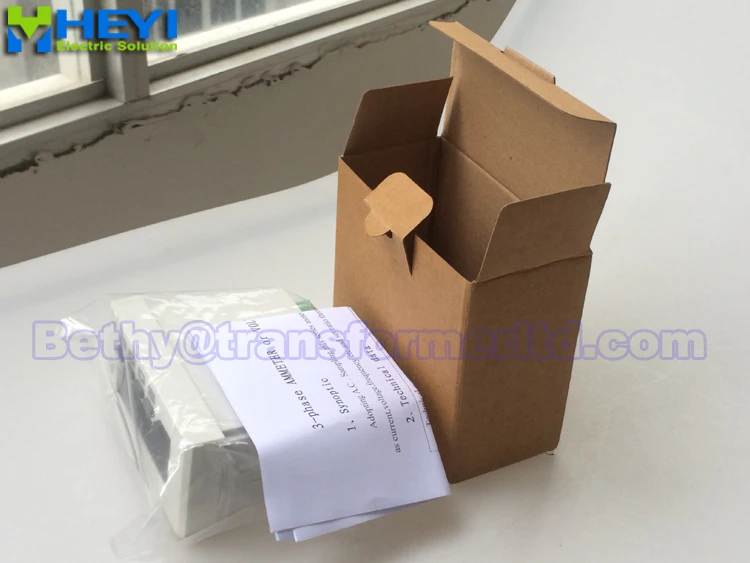

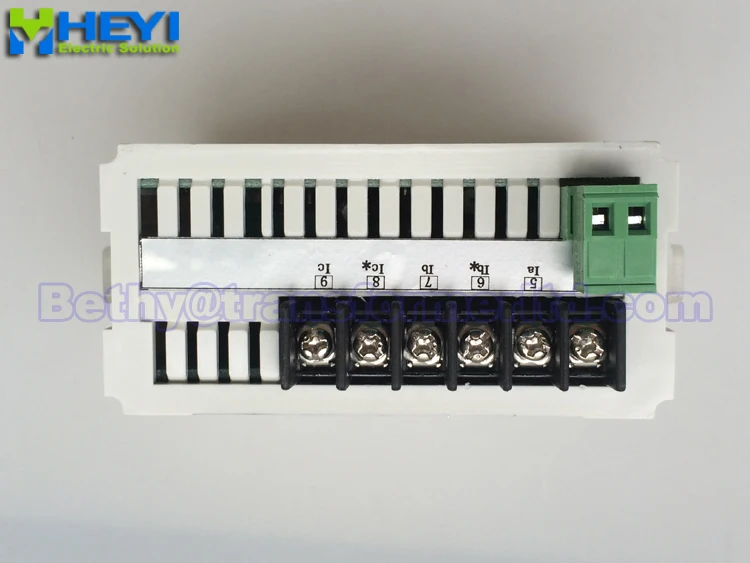

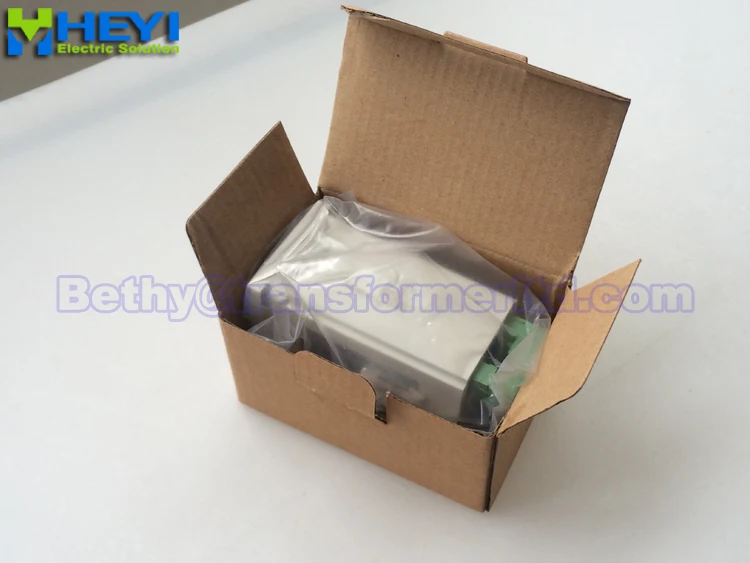

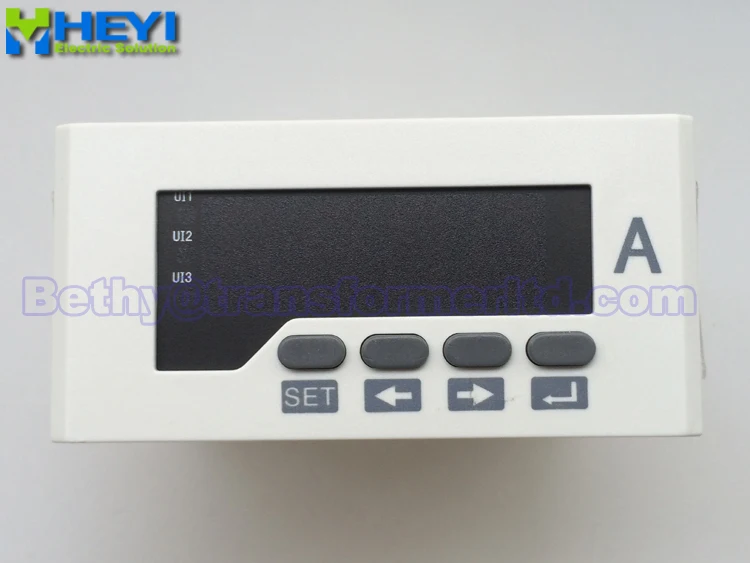

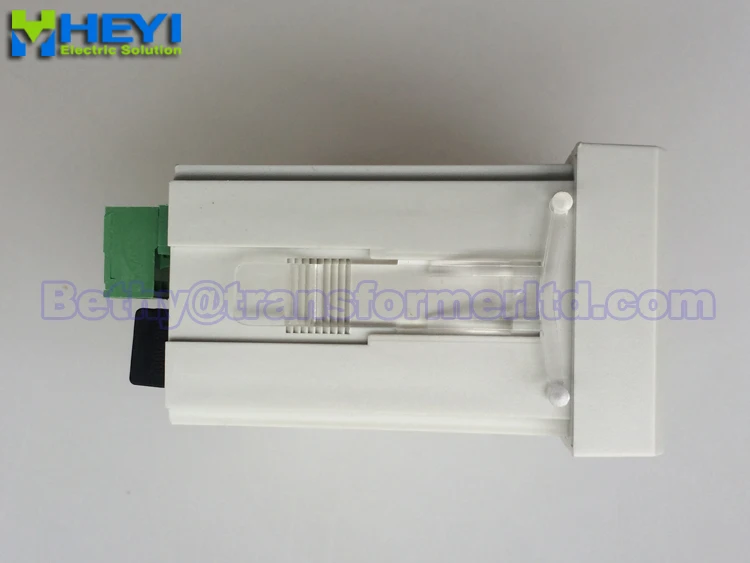

Production images:
Product data:
|
Accuracy Measurement |
||
|
Current |
Class 0.5 |
|
|
Input Measurement |
||
|
Wiring |
Three phase |
|
|
Rated Value |
AC 1A/5A |
|
|
Overload |
Sustained: 1.2 times; Instantaneous: 10 times/ 5s |
|
|
Power consumption |
<0.4VA (per phase) |
|
|
Impedance |
<20mΩ |
|
|
Frequency |
45~65Hz or DC |
|
|
Power supply |
||
|
Working range |
AC/DC 80V~270V, AC220V, AC380V, AC100V |
|
|
Power consumption |
<4VA |
|
|
Environment |
||
|
Operational environment |
-10C~+55C |
|
|
Storage environment |
-25C~+70C |
|
|
Relative humidity |
≤93%, in the place without corrosive gas |
|
|
Height above sea level |
≤2500m |
|
|
Safety |
||
|
Insulation resistance |
>100MΩ |
|
|
AC withstand voltage |
AC 2KV |
|
|
Electro Magnetic Compatibility |
||
|
Electro-Static discharge |
class 4 |
|
|
Electrical Fast Transient pulse train |
class 4 |
|
|
Electrical surge |
class 4 |
|
Outline Drawing:
Terminal Connection Diagram:
Ordering Guide:
1) Please define the Power Supply(Voltage): AC/DC 80V-270V, AC 220V, AC 380V, AC 100V. Which one?
2) Please define the size: 80*160/ 60*120/ 48*96 mm. Which one?
2) Choose the Extra Function below:
| Function | Unit price | 5% discounts when 5pcs |
| A.+None | $23.44 | $22.27 |
| B.+RS485 communication | $28.13 | $26.72 |
|
C.+1 loop Transmission output |
$35.16 | $33.40 |
|
D.+3 loop Transmission output |
$53.91 | $51.21 |
|
E.+1 loop Transmission output +RS485 communication |
$39.84 | $37.85 |
|
F.+3 loop Transmission output +RS485 communication |
$58.59 | $55.66 |
Important: When you ordering, please note, for example : HY-3AA, AC220V,48*96, A. It refers to power supply: three phase, AC 220V, input current: AC 1A/5A, 48*96 mm, with no extra function. When you want add other extra function, you should make the order without paying, and at the same time make a note chooseing the function number, such as B... After i change the total cost, i'll infom you, then you finish paying. Thank you
However, if you make the order without any notice, i'll send you HY-3AA, AC220V,48*96, A finally!!
Tipical Application project:
